[教學] 使用 AirPlay 將 iPhone / iPad的螢幕投影到電視


A11 使用 AirPlay 將 iPhone / iPad的螢幕投影到電視
A10 使用 AirPlay 將 iPhone / iPad的螢幕投影到電視

專屬於蘋果的 AirPlay 將 iPhone / iPad投影

使用蘋果設備的用戶應該都有聽過 AirPlay 這個功能, 但你知道如何使用 AirPlay 將 iPhone / iPad投影嗎?
AirPlay是蘋果iOS系統的投影功能,可以將手機內的電影、照片、影片、簡報 分享到 電視棒 或 Apple TV
本篇教學將使用iPhone的AirPlay功能利用電視棒投影畫面至電視螢幕


目錄

如何安裝電視棒

AirPlay螢幕鏡像輸出教學

WiFi 路由器網路使用教學

手機 4G/5G 電信網路上網使用教學

沒有網路的使用教學

AirPlay 搜尋不到


AirPlay 投影前

請先安裝好電視棒

1.將無線同屏電視棒和USB天線連接, 然後把 USB 天線電源插頭, 插入 5V/1A 變壓器 (手機充電器)。

2.把 電視棒 插入電視機的 數位影音 輸入端* 。
請把USB天線放置在電視機前方, 讓 Wi-Fi 信號更好。可搭配 數位影音 延長線使用

3.用電視搖控器, 把電視切換到 電視棒 所插入的 數位影音 輸入端。

4.然後 電視棒 的畫面將會顯示在電視上。請按照此說明書完成安裝和設定。

AirPlay投影時請使用「螢幕鏡像輸出」按鈕

使用電視棒進行投影時,使用 螢幕鏡像輸出 才能將影音同步輸出至電視/螢幕

如使用的如下圖右方箭頭指示之圖示,只能傳送「音訊」至螢幕


1.有 WiFi 路由器網路的使用教學

如果使用環境有 Wi-Fi 路由器, 請先將 電視棒 和 iPhone、iPad 連接上相同的 Wi-Fi 網路,

這樣 iPhone、iPad 可以透過 Wi-Fi 路由器 能同時上網以及螢幕鏡像傳送畫面

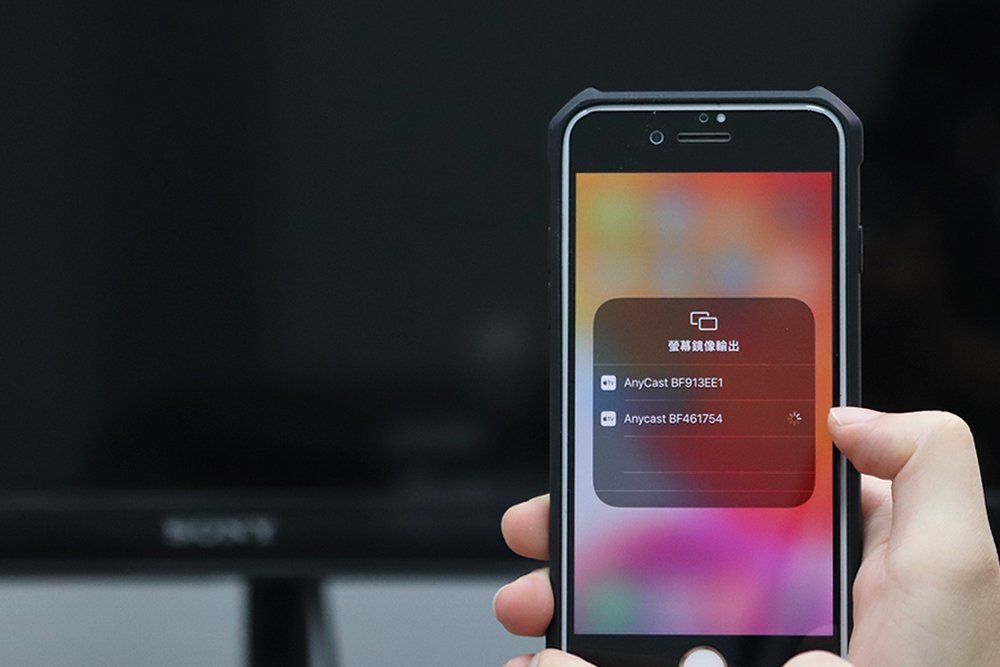

打開「控制中心」點一下 「螢幕鏡像輸出」。

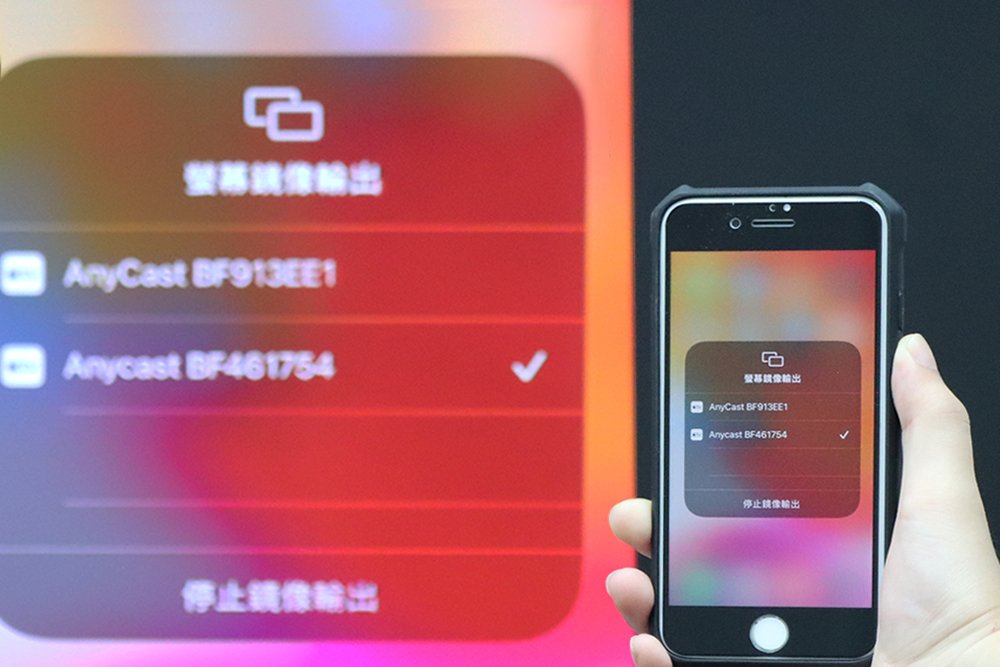

從列表中選取您的電視棒,螢幕成功投影至螢幕


2.家裡沒有 WiFi 路由器的使用教學(使用手機 4G/5G 電信網路上網)

如果使用環境沒有 Wi-Fi 路由器, 則 iPhone、iPad 需要透過本手 4G/5G 電信網路上網, 此情況請讓 iPhone、iPad 透過 Wi-Fi 連接上 電視棒的熱點。

1.將手機的WiFi 連上 電視棒的熱點 (SSID 為 AnyCast########)

(因 電視棒 熱點無法上網, 所以 iPhone 會自動切換成 4G/5G 電信上網)

2. 打開「控制中心」: …

3. 點一下 「螢幕鏡像輸出」。

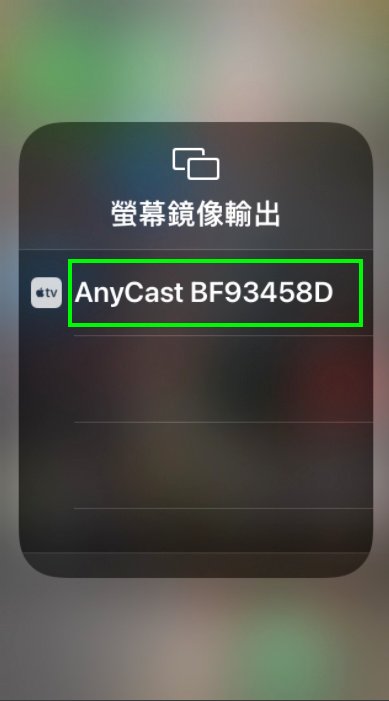

4. 從列表中選取您的 電視棒


5. 螢幕成功投影至螢幕


如果 iPhone 連接 電視棒 熱點之後, 不能透過 4G/5G 上網, 請試用下面的方法

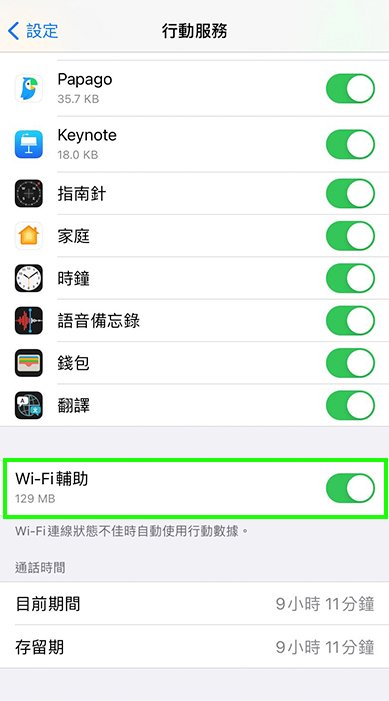

  • 設定 > 行動服務 > (最下方) Wi-Fi 輔助 > 打開

沒有網路如何投影

若您的手機沒有網路、附近也沒有Wi-Fi路由器,一樣可以使用AirPlay螢幕鏡像功能

不過因為沒有網路,許多線上程式(例如YouTube)沒辦法播放,只能單純投影您手機的內容

或是使用其他手機的熱點分享,連接網路


如果 AirPlay 搜尋不到電視棒 怎麼辦?

蘋果官網所發佈的文章有提到,如果 AirPlay 搜尋不到請重新啟動要使用 AirPlay 或螢幕鏡像輸出的裝置(iPhone、iPad 或 iPod touch)


iOS 的 Wi-Fi 輔助 有什麼用?

您可以透過「Wi-Fi 輔助」保持 Internet 連線,即使 Wi-Fi 連線品質不佳也無須擔心。舉例來說,若您使用 Safari 時 Wi-Fi 連線品質不佳,因而無法載入網頁,「Wi-Fi 輔助」將啟用並自動切換至行動網路,讓您能繼續載入網頁。您可以使用「Wi-Fi 輔助」搭配大部分的 app,例如 Safari、Apple Music、「郵件」及「地圖」等等。
「Wi-Fi 輔助」啟用時,您會在裝置的狀態列中看見行動數據圖像。
由於 Wi-Fi 連線品質不佳時,您會透過行動網路保持 Internet 連線,因此行動數據用量可能會增加。對多數使用者而言,這應該只會比原先的用量多出很小的比例。


Airplay 和 藍牙 應該選哪一個?

有別於藍牙的接駁方式,Airplay是以Wi-Fi傳輸數據,不會被單一裝置霸佔了,所以即使在通話中,依然可以用後台的App,進行音樂播放,而且Airplay2已改良至可以同時操控兩個或以上的連接裝置,用家可以直接利用Airplay2的簡易界面,控制不同裝置的音量和開關,較藍牙連接方便操控。


在使用 Zoom App 時如何啟動 AirPlay 螢幕鏡像輸出?

Zoom does not give you direct access to airplay during or before the meeting. It would be best to do this on your own by using the following method step by step.
Step 1:Sign in or register yourself with Zoom.

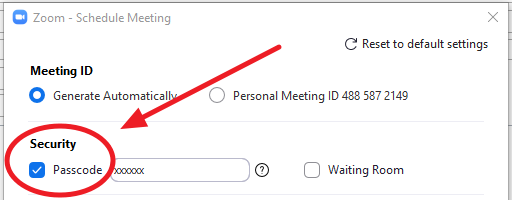

Step 2:Open the application and enter the meeting with a particular password.

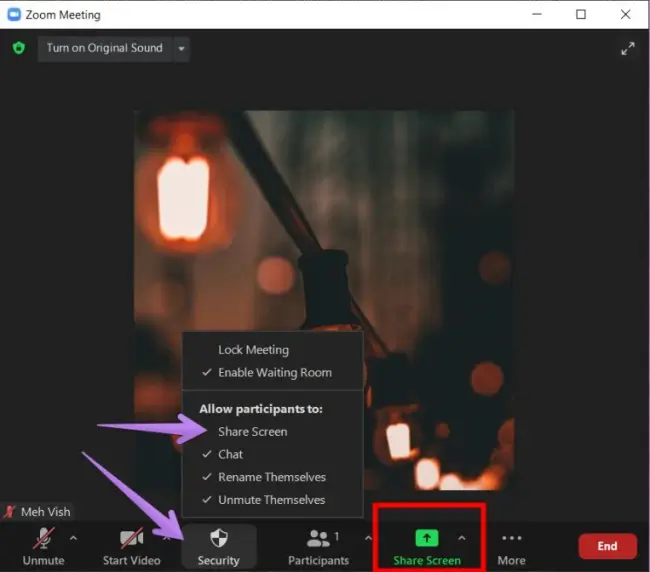

Step 3:Once you are in, the ‘Share Screen’ button will come in the below menu.

Step 4:Just hit that button to open a new window.
Step 5:Check and switch iPhone or iPad option.
Step 6:Install the plugin using the on-screen instructions (For the first time only).
Step 7:Now, open your device control center using specific shortcuts or browsing settings.
Step 8:Search for screen mirroring and hit that button.
Step 9:It will open all the Zoom users or other devices with airplay mirroring around you.
Step 10:Select your Zoom name that will start mirroring your Screen on Zoom.
Keep in mind that both devices should be on the same internet connection while following the above process. The screen will only be visible to you, and you can control both devices from a single space.
To stop sharing your screen, you can browse the control centre of your phone and hit the stop sharing button. Also, you can use the Zoom screen to stop sharing your screen.
