TOTOLINK 無線路由器 WiFi Router 設定教學

A39C TOTOLINK 無線路由器 WiFi Router 設定教學 圖片來源:TOTOLINK 官網

明明已經很靠近WiFi路由器,看影片時網路仍還是卡卡的很困擾? 以下教你使用免費的WiFi分析儀 App 與 TOTOLINK 路由器設定 改變WiFi區間,不用再跟隔壁鄰居搶頻道,讓你的網路隨時暢通保持好心情!

以下將使用 TOTOLINK 路由器設定

以下設定將配合電視棒規格進行設定

使用Wi-Fi分析儀

再進行設定之前,我們必須先知道家裡的WiFi頻道在哪個區間,前幾篇文章有教大家如何使用WiFi分析的教學

《延伸閱讀》:Wi-Fi 很慢 怎麼辦?教你一招讓 Wi-Fi 暢通無阻!

依照教學找到家中WiFi查看狀況,若處在比較多人使用的頻道就可以進行下一步,使用路由器調整到人少(影響最小)的頻道囉!

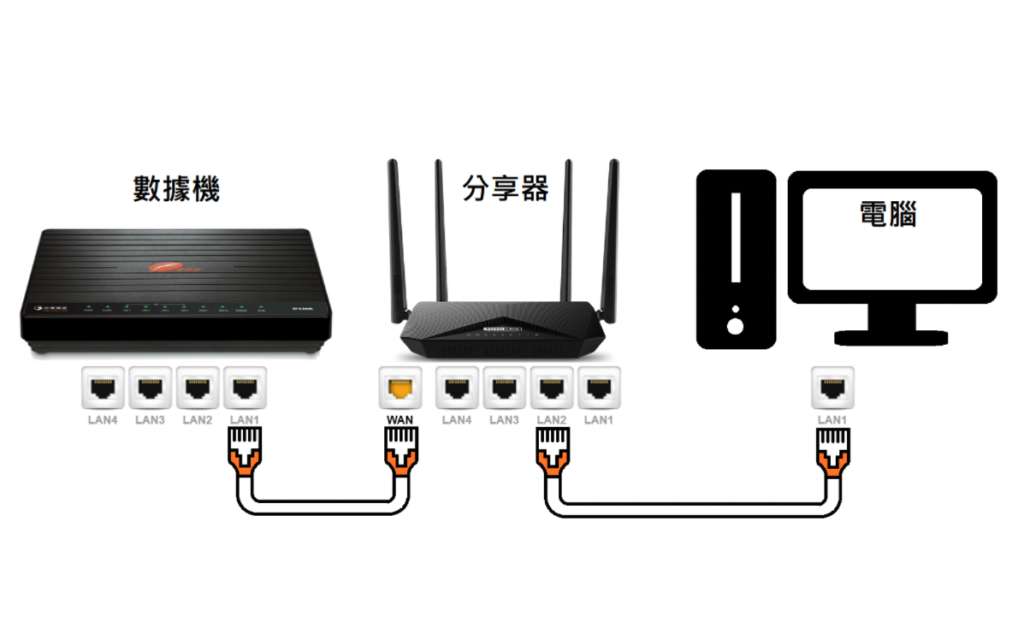

將網路線連接路由器與數據機/網路埠

1.將網路線插入TOTOLINK路由器(黃色Internet端) 另一邊連上 數據機或是網路埠(例如:中華電信小烏龜)看到指示燈亮起即成功

2.使用另一條網路線連接LAN1-4任一埠,線的另一端連接電腦的網路埠


進入TOTOLINK路由器更改設定

開啟瀏覽器輸入 192.168.1.1

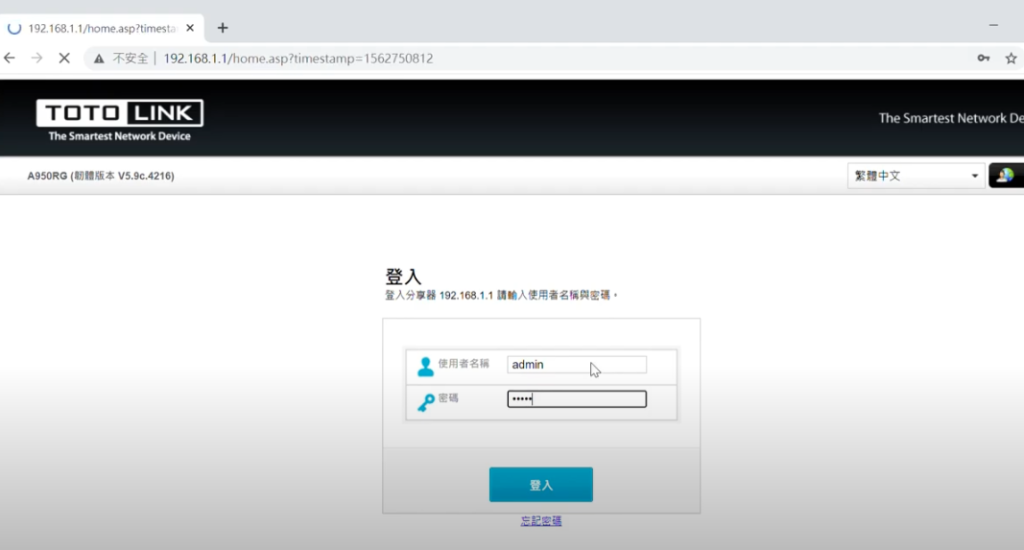

進入畫面後輸入密碼,預設使用者名稱為admin /密碼:admin ; 如果有更改過密碼的用戶請輸入更改後的密碼

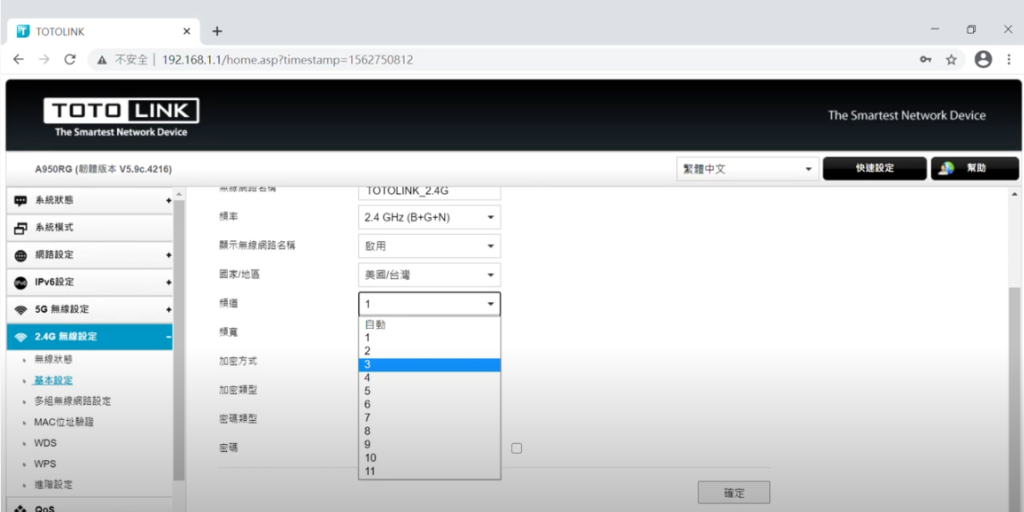

進入畫面後點選「2.4G無線設定」-「基本設定」-選擇影響最小的區間頻道

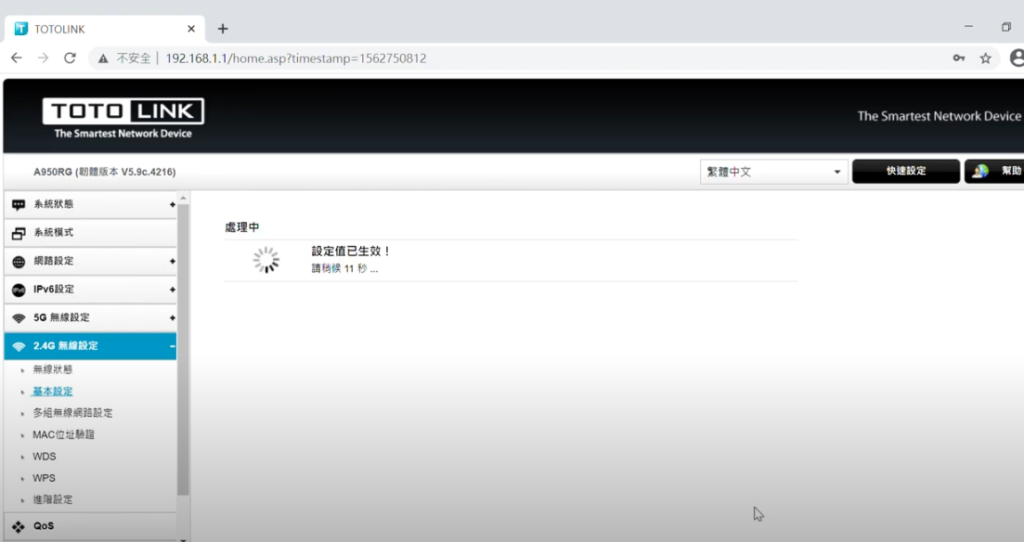

按下確定,等程式更新完成就可以了


更多問題請詢問 TOTOLINK 客服

如果您的 TOTOLINK 路由器使用上有問題 請詢問 TOTOLINK 客服提供更詳細的解決方式唷~


閱讀相關文章:【功能設定】如何進入分享器設定頁面《5000》

Wi-Fi  is a family of wireless network protocols, based on the IEEE 802.11 family of standards, which are commonly used for local area networking of devices and Internet access, allowing nearby digital devices to exchange data by radio waves. These are the most widely used computer networks in the world, used globally in home and small office networks to link desktop and laptop computers, tablet computers, smartphones, smart TVs, printers, and smart speakers together and to a wireless router to connect them to the Internet, and in wireless access points in public places like coffee shops, hotels, libraries and airports to provide the public Internet access for mobile devices.Wi‑Fi is a trademark of the non-profit Wi-Fi Alliance, which restricts the use of the term Wi-Fi Certified to products that successfully complete interoperability certification testing.

As of 2017, the Wi-Fi Alliance consisted of more than 800 companies from around the world. As of 2019, over 3.05 billion Wi-Fi enabled devices are shipped globally each year.Wi-Fi uses multiple parts of the IEEE 802 protocol family and is designed to interwork seamlessly with its wired sibling, Ethernet. Compatible devices can network through wireless access points to each other as well as to wired devices and the Internet. The different versions of Wi-Fi are specified by various IEEE 802.11 protocol standards, with the different radio technologies determining radio bands, and the maximum ranges, and speeds that may be achieved. Wi-Fi most commonly uses the 2.4 gigahertz (120 mm) UHF and 5 gigahertz (60 mm) SHF radio bands; these bands are subdivided into multiple channels. Channels can be shared between networks but only one transmitter can locally transmit on a channel at any moment in time.
